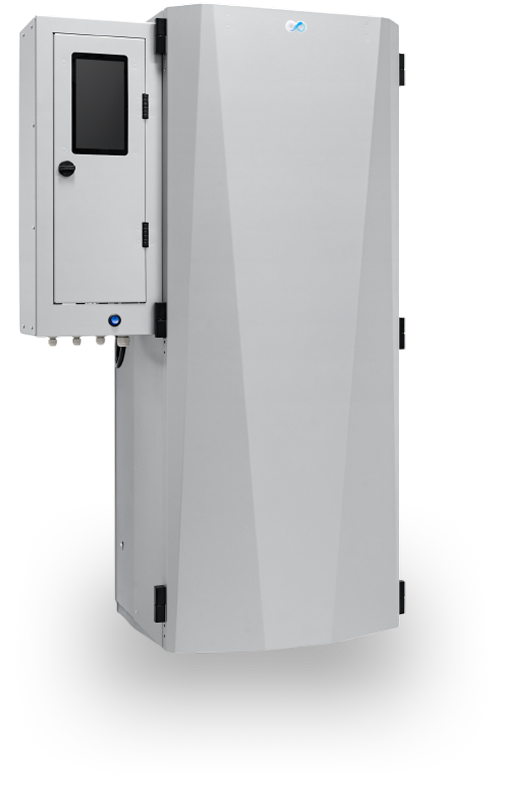

ISE Steam Exchange Humidifier
ISE steam exchange humidifier from steamOvap uses energy from a central boiler to produce pure, sterile steam that is easy to distribute into the air handling unit or ventilation duct.
Specification
- Steam Output: 4 to 600 lb/h [1.8 to 272 kg/h] with pressurized steam from 5 to 15PSI [34 to 103kPa]
- Modulation: Full linear control from 1–100%
- Accuracy: ±1% RH for precise humidity control

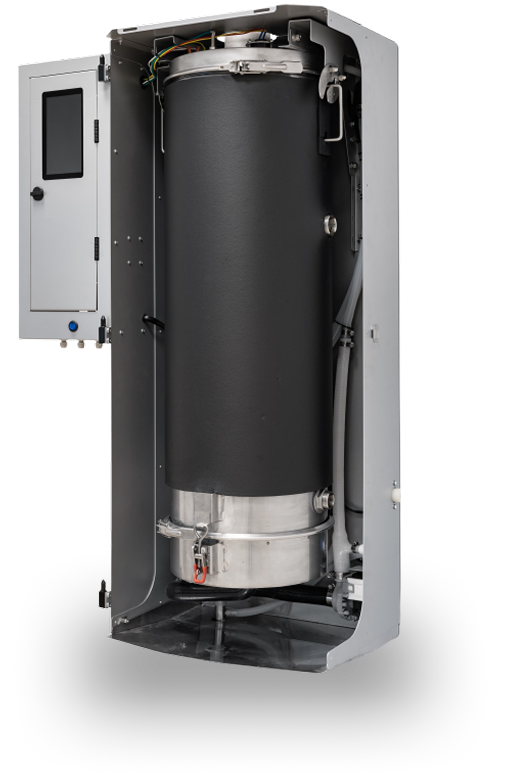

- Cylinder: Stainless steel with thermal insulation
- Heat Exchanger: Vertical self-cleaning unique and patent design
- Material Options: Stainless steel or copper + nickel plating
- Footprint: Smallest and lightest in its class for easy installation
- Works with tap water, softened water, or RO water
- Scale naturally detaches and accumulates without clogging drains
- Interface: 7” touchscreen with real-time monitoring
- Communication: Modbus RTU standard; BACnet optional
- EcoEnerSmart®: Energy and water-saving function
- Supplied with electric modulating control valve (24Vac, 0–10V signal)
- Includes strainer, F&T condensate trap, wall mounting bracket, water supply braided hose, and drain sleeve
- Supply voltage: 120Vac or 230Vac, 1ph, 50/60Hz
- Certifications: UL Listed, Conforms to CE directive
- Warranty: 3 years standard : Best warranty of the industry
Key Features
PureSteam Exchange
Produces pure and sterile steam using central boiler energy. Ensures clean humidity distribution in AHUs or ventilation ducts
VerticalHeat
Patent-pending self-cleaning vertical heat exchanger design. Prevents clogging and allows for easy access and cleaning with no tool require and for long term reliability
EcoEnerSmart®
Innovative energy-saving function reduces water and power consumption. Delivers efficient performance without compromising comfort
SmartTouch Control
7” touchscreen interface with full modulation from 1–100%. Provides easy setup, real-time monitoring, and precise humidity control
Guide&Lock maintenance
Patented Guide & Lock system for tool-free cylinder opening and cleaning in minutes. No spare parts required, making service for cleaning simple and cost-effective.
CompactPower
Smallest footprint and lightweight design in its class. Easy wall mounting and versatile integration with steam networks
